最近笔记本的音响坏了,郁闷啊、纠结中,有一个想法:捕获电脑的声音,这个声音可以是movie的声音、music的声音、或者系统的声音,只要是经过声卡播放的声音,都可以捕获。然后通过usb发送到手机上播放,也可以通过wifi发送到手机播放。
看看怎么做,可以使用微软发布的DirectX SDK,我使用的是DirectX 10 SDK,很多地方可以下载到这个sdk, 大小500M左右。在sdk的目录DirectX 10 SDK\Samples\C++\DirectSound下,有一个例子CaptureSound,CaptureSound是用来捕获声音的,它一面捕获声音,一面写进一个wav的文件里。修改这个例子,把捕获的声音立即发送给手机,可以通过usb发送、或者wifi。

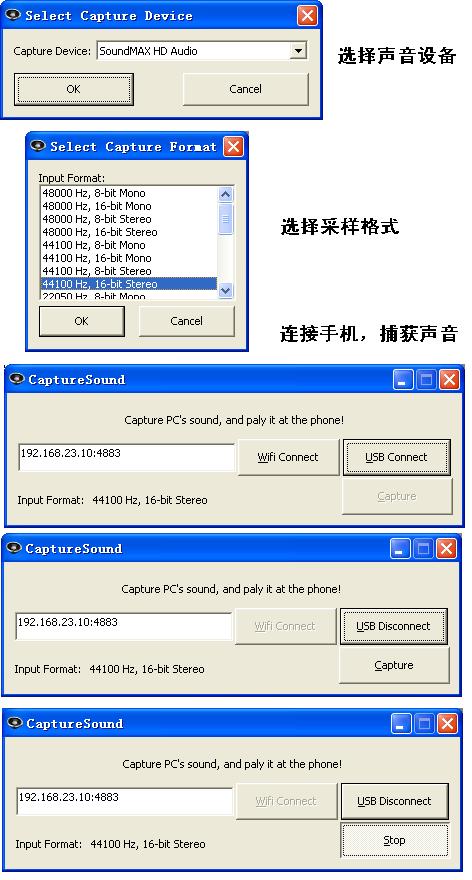

首先设置pc的录音通道,在电脑的托盘上,双击小喇叭,菜单“选项”->“属性”,选择“录音”,只勾选“立体声混音”。看一下效果:
转载,请写明出处:
usb通信时这样的:
在pc上使用adb命令:adb forward tcp:4626 tcp:4883,在PC上建立4626端口通信数据将被重定向到手机端server的4883端口;然后初始化socket,连接到手机4626端口,进行socket通信。PC端代码如下:
DWORD WINAPI usbThreadFunc(LPVOID threadNum)
{
int length;
CString temp;
if(!initAdb())//adb init
{
MessageBox(0, L"初始化手机出错!", L"提示", MB_OK);
return 0;
}
if(!InItClientSock())//socket init
{
MessageBox(0, L"初始化IP地址出错!", L"提示", MB_OK);
return 0;
}
if(!USBConnectSock((HWND)threadNum))//connect socket
{
MessageBox(0, L"连接IP地址出错!", L"提示", MB_OK);
return 0;
}
//等待连接的时候,连接可能被取消。
if(clientThreadRun)
{
}
else
{
MessageBox(0, L"用户取消!", L"提示", MB_OK);
return 0;
}
SetDlgItemText( (HWND)threadNum, IDC_SOUNDFILE, TEXT("&USB Disconnect") );
EnableWindow( GetDlgItem( (HWND)threadNum, IDC_RECORD ), TRUE );
EnableWindow( GetDlgItem( (HWND)threadNum, IDC_BUTTON_WIFI ), FALSE );
while(clientThreadRun)
{
if( (length = recv(clientSock,(char*)recv_message_client,sizeof(recv_message_client),0))>0)
{
memset(recv_message_client, 0, sizeof(recv_message_client));
LogPrintf(recv_message_client);
}
}
return 0;
}
这里说道最重要的是捕获声音,下面的代码启动了一个线程来处理捕获到的声音:
DWORD WINAPI captureThreadFunc(LPVOID hDlg)
{
DWORD dwResult;
while(g_bRecording)
{
dwResult = MsgWaitForMultipleObjects( 1, &g_hNotificationEvent, FALSE, INFINITE, QS_ALLEVENTS );
switch( dwResult )
{
case STATUS_WAIT_0://case WAIT_OBJECT_0 + 0:
RecordCapturedData();
break;
}
}
return 0;
}
在创建捕获声音的设备的时候,会创建一个事件,这个事件就是捕获到一定长度的声音之后(比如2K大小的声音),会发出一个通知,告诉你去处理。上面的线程,就是一直待等待这个事件,然后再去处理捕获到的声音,把声音发送给socket,交给手机处理,代码:
HRESULT RecordCapturedData()
{
HRESULT hr;
VOID* pbCaptureData = NULL;
DWORD dwCaptureLength;
VOID* pbCaptureData2 = NULL;
DWORD dwCaptureLength2;
DWORD dwReadPos;
DWORD dwCapturePos;
LONG lLockSize;
if( NULL == g_pDSBCapture )
return S_FALSE;
if( FAILED( hr = g_pDSBCapture->GetCurrentPosition( &dwCapturePos, &dwReadPos ) ) )
return DXTRACE_ERR_MSGBOX( TEXT("GetCurrentPosition"), hr );
lLockSize = dwReadPos - g_dwNextCaptureOffset;
if( lLockSize < 0 )
lLockSize += g_dwCaptureBufferSize;
// Block align lock size so that we are always write on a boundary
lLockSize -= (lLockSize % g_dwNotifySize);
if( lLockSize == 0 )
return S_FALSE;
// Lock the capture buffer down
if( FAILED( hr = g_pDSBCapture->Lock( g_dwNextCaptureOffset, lLockSize,
&pbCaptureData, &dwCaptureLength,
&pbCaptureData2, &dwCaptureLength2, 0L ) ) )
return DXTRACE_ERR_MSGBOX( TEXT("Lock"), hr );
// Write the data to socket发送给手机
socketSend(pbCaptureData,dwCaptureLength);
// Move the capture offset along
g_dwNextCaptureOffset += dwCaptureLength;
g_dwNextCaptureOffset %= g_dwCaptureBufferSize; // Circular buffer
if( pbCaptureData2 != NULL )
{
// Write the data to socket发送给手机
socketSend(pbCaptureData2,dwCaptureLength2);
// Move the capture offset along
g_dwNextCaptureOffset += dwCaptureLength2;
g_dwNextCaptureOffset %= g_dwCaptureBufferSize; // Circular buffer
}
// Unlock the capture buffer
g_pDSBCapture->Unlock( pbCaptureData, dwCaptureLength,
pbCaptureData2, dwCaptureLength2 );
return S_OK;
}
通过socket发送数据的代码很简单,没有任何处理捕获到的声音数据,就发送给手机了
VOID socketSend(VOID* send_message, int length)
{
if(clientSockConnect==0)
{
int send_len = length;
char * buf = (char*)send_message;
while(send_len>0)
{
int rc = send(clientSock,buf,send_len, 0);//MSG_OOB
if (rc < 1)//if (rc == SOCKET_ERROR || rc == 0)
{
break;
}
send_len -= rc;
buf += rc;
}
buf = NULL;
}
}

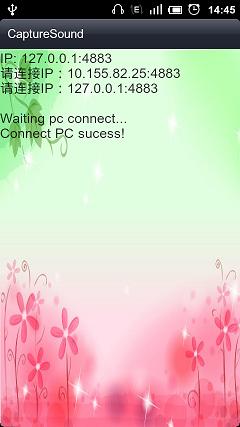

手机端的代码如下,注意手机上audioTrack的设置:44100,AudioFormat.CHANNEL_CONFIGURATION_STEREO,AudioFormat.ENCODING_PCM_16BIT。在启动电脑捕获声音的时候也要同样的设置,否则播放的声音是杂音:
public class TcpConnect extends Thread {
private ServerSocket mServerSocket;
private Socket mClient;
private Handler mHandler;
private boolean running = false;
private boolean palying = false;
private int audioPlayBufSize;
private AudioTrack audioTrack;
private static final int frequency = 44100;
private static final int channelConfiguration = AudioFormat.CHANNEL_CONFIGURATION_STEREO;
private static final int audioEncoding = AudioFormat.ENCODING_PCM_16BIT;
private ArrayList<byte[]> inBuf = new ArrayList<byte[]>();
public TcpConnect(Handler handler) {
mHandler = handler;
audioPlayBufSize = AudioTrack.getMinBufferSize(frequency,
channelConfiguration, audioEncoding);
audioTrack = new AudioTrack(
AudioManager.STREAM_MUSIC,// .STREAM_RING,//.STREAM_MUSIC,
frequency, channelConfiguration, audioEncoding,
audioPlayBufSize, AudioTrack.MODE_STREAM);
audioTrack.setStereoVolume(1.0f, 1.0f);
Log.d("playPCAudio", "audioPlayBufSize: " + audioPlayBufSize);
palying = false;
inBuf.clear();
}
public void run() {
try {
mServerSocket = new ServerSocket(4883);
System.out.println("TcpConnect" + "开始监听");
mClient = mServerSocket.accept();
System.out.println("TcpConnect" + "检测到有连接");
InputStream is = mClient.getInputStream();
running = true;
int readLen = 0;
byte[] readBuf = new byte[audioPlayBufSize];
System.out.println("TcpConnect" + "接收");
playThread palyt = new playThread();
palyt.setPriority(Thread.MAX_PRIORITY);
palyt.start();
while (running) {
if ((readLen = is.read(readBuf, 0, audioPlayBufSize)) > 0) {
byte[] tmpBuf = new byte[readLen];
System.arraycopy(readBuf, 0, tmpBuf, 0, readLen);
synchronized (inBuf) {
inBuf.add(tmpBuf);
}
}
}
} catch (Exception e) {
System.out.println("TcpConnect TCP error:" + e.getMessage());
}
System.out.println("TcpConnect over");
}
class playThread extends Thread {
public playThread() {
}
public void run() {
audioTrack.play();
palying = true;
while (running) {
ArrayList<byte[]> buf = new ArrayList<byte[]>();
buf.clear();
synchronized (inBuf) {
if (inBuf.size() == 0)
continue;
buf = (ArrayList<byte[]>) inBuf.clone();
inBuf.clear();
}
for (int i = 0; i < buf.size(); i++) {
byte[] tmpBuf = buf.get(i);
audioTrack.write(tmpBuf, 0, tmpBuf.length);
}
}
if (palying) {
audioTrack.stop();
audioTrack.release();
palying = false;
}
}
}
}
我的博客:
PC和手机的代码下载地址:
大家在捕获声音的时候,可能会出现杂音,需要调试,请留言。
有需要的同学在这里下载:
已经上传到百度网盘,里面有使用说明。CSDN的下载链接需要积分,无法修改。
